r 何谓振动摩擦焊接机r

rr
r

rr 首先请先了解摩擦焊，这是一种新型的塑胶焊接技术，简单理解就是对2个塑胶件施压，令其相互高速地摩擦，摩擦面积部分瞬间发生激烈的分子运动，可以一下子产生大量的热力，这个热力甚至可以令塑胶熔化，以满足焊接的目的。以此开发的机械，是为摩擦焊机，比较经典的有旋转熔接机，但此类机械只能对用“圆形”的平面面积进行焊接，杯盖、浮球之类的轻松完成。但遇上不规则的焊接面积，就需要借助振动摩擦焊接机，它通过往复运动使胶件互相摩擦，物理作用是一样的，以此达到焊接目的。 r

rr
r r

rr r

rr 本厂专业生产振动摩擦焊接机，网上报价与目前销售中的价格可能存在差异，请致电13724184451 林先生查询。为了拓宽市场渠道，我们欢迎地区代理洽谈。 r

r
rr 视频演示可以复制以下地址另行观看：r

rr hornwelltech.com/displayproduct.html?id=3055174239143360r

rr r

rr
r

rr r

rr
r

rr
r

r

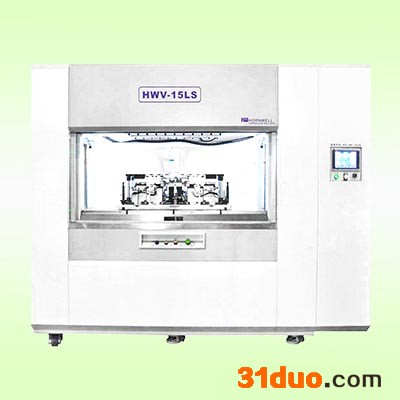

r 常用机型 （欲索取详尽的中文资料，欢迎直接联系我们）r

rr
r

rr r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r Model r r	r r HWV-M55LS r r	r r HWV-15LS r r	r r HWV-15HLS r r	r r HWV-30LS r r	r r HWV-30HLS r r
r r Vibrating headr group r r
r r Upper clamp weight( KG) r r	r r ≤12KG r r	r r ≤30KG r r	r r ≤45KG r r	r r ≤60KG r r	r r ≤75KG r r
r r Welding area (c㎡) r r	r r 50c㎡ r r	r r 160 c㎡ r r	r r 200 c㎡ r r	r r 280 c㎡ r r	r r 450 c㎡ r r
r r Amplitude(mm) r r	r r 1.8 r r	r r 1.8 r r	r r 1.8 r r	r r 1.8 r r	r r 1.8 r r
r r Frequency( Hz) r r	r r 210Hz-260Hz r r	r r 200Hz-240Hz r r	r r 200Hz-240Hz r r	r r 200Hz-240Hz r r	r r 200Hz-240Hz r r
r r Mechanical parameters r r
r r length mm r r	r r 1174 r r	r r 2600 r r	r r 2600 r r	r r 2780 r r	r r 2780 r r
r r width mm r r	r r 965 r r	r r 1280 r r	r r 1280 r r	r r 1284 r r	r r 1284 r r
r r height mm r r	r r 2163 r r	r r 2100 r r	r r 2280 r r	r r 2390 r r	r r 2390 r r
r r Soundproof door width mm r r	r r 934 r r	r r 1443 r r	r r 1443 r r	r r 1621 r r	r r 1621 r r
r r Soundproof door heightmm r r	r r 446 r r	r r 650 r r	r r 765 r r	r r 723 r r	r r 723 r r
r r The length of the upper mold base plate mm r r	r r 300 r r	r r 860 r r	r r 860 r r	r r 1140 r r	r r 1140 r r
r r The width of the upper mold base plate mm r r	r r 295 r r	r r 390 r r	r r 390 r r	r r 560 r r	r r 560 r r
r r Lifting platform length mm r r	r r 792 r r	r r 1450 r r	r r 1450 r r	r r 1580 r r	r r 1580 r r
r r Lifting platform width mm r r	r r 350 r r	r r 520 r r	r r 600 r r	r r 720 r r	r r 720 r r
r r Lifting table moving distance mm r r	r r 300 r r	r r 300 r r	r r 500 r r	r r 500 r r	r r 500 r r
r r Lifting platform and vibrating head spacing mm r r	r r 380 r r	r r 560 r r	r r 685 r r	r r 720 r r	r r 720 r r
r r Maximum welding force（ N） r r	r r 6000 r r	r r 12000 r r	r r 12000 r r	r r 12000 r r	r r 25000 r r
r r Lift table drive r r	r r Gas-liquid booster r r	r r Hydraulic servo r r	r r Hydraulic servo r r	r r Hydraulic servo r r	r r Hydraulic servo r r
r r weight   （T） r r	r r 1.2 r r	r r 2.5 r r	r r 3 r r	r r 3.5 r r	r r 4 r r
r r Noise range (decibel) r r	r r Less than 85 r r	r r Less than 85 r r	r r Less than 85 r r	r r Less than 85 r r	r r Less than 85 r r
r r Electronicr control part r r
r r Input power r r	r r AC 220V 3 phase r r	r r AC 380V 3 phase r r	r r AC 380V 3 phase r r	r r AC 380V 3 phase r r	r r AC 380V 3 phase r r
r r Power consumption r r	r r 6 KVA r r	r r 18 KVA r r	r r 18 KVA r r	r r 35 KVA r r	r r 35 KVA r r
r r Output Power r r	r r 5.5 KW r r	r r 15 KW r r	r r 15 KW r r	r r 30 KW r r	r r 30 KW r r
r r Resonance tuning r r	r r Auto r r	r r Auto r r	r r Auto r r	r r Auto r r	r r Auto r r
r r Welding method r r	r r Time/depth r r	r r Time/depth r r	r r Time/depth r r	r r Time/depth r r	r r Time/depth r r
r r Welding stages r r	r r 6 r r	r r 6 r r	r r 6 r r	r r 6 r r	r r 6 r r
r r Data storage r r	r r 80 r r	r r 80 r r	r r 80 r r	r r 80 r r	r r 80 r r
r r Result determination method r r	r r Pass / bad r r	r r Pass / bad r r	r r Pass / bad r r	r r Pass / bad r r	r r Pass / bad r r
r r Operating language r r	r r KOR/UK/CHN r r	r r KOR/UK/CHN r r	r r KOR/UK/CHN r r	r r KOR/UK/CHN r r	r r KOR/UK/CHN r r
r r Device networking r r	r r NON r r	r r NON r r	r r NON r r	r r NON r r	r r Optional r r
r r communication method r r	r r PROFIBUS-DP r r	r r PROFIBUS-DP r r	r r PROFIBUS-DP r r	r r PROFIBUS-DP r r	r r PROFIBUS-DP r r
r r Data printing function r r	r r NON r r	r r NON r r	r r NON r r	r r Optional r r	r r Optional r r
r r Delivery r r	r r 30 days r r	r r 30 days r r	r r 30 days r r	r r 30 days r r	r r 30 days r r
