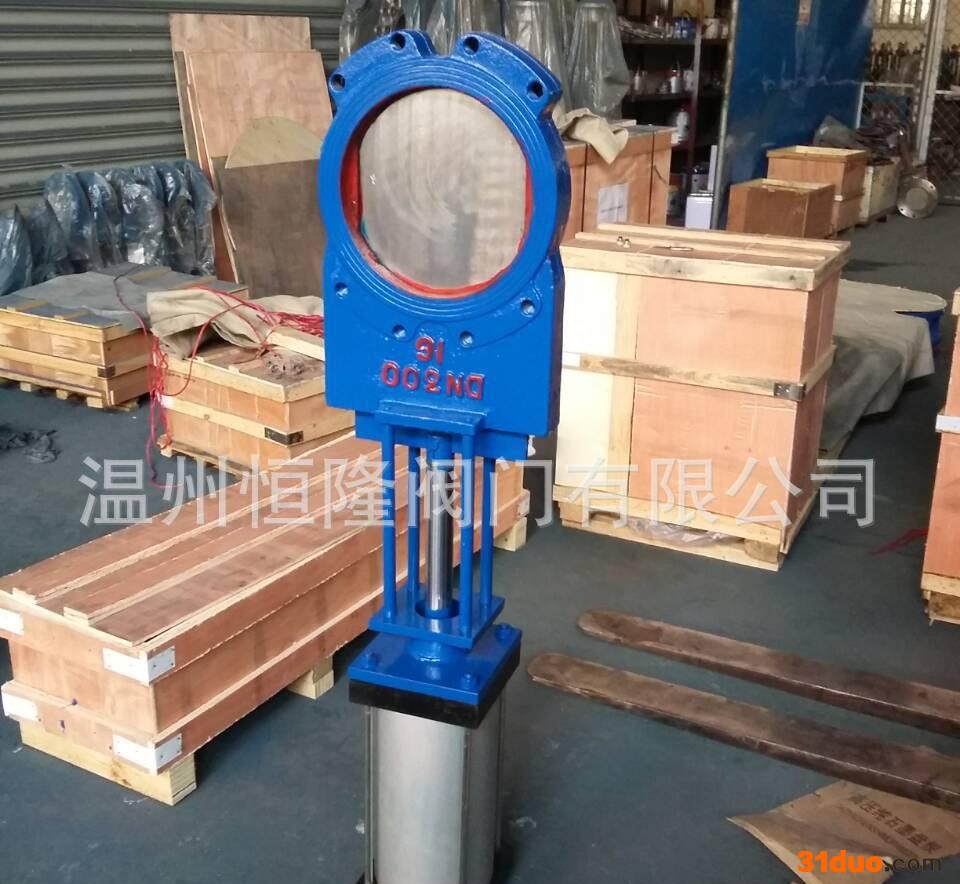

rrr 铸铁气动浆液阀，对夹气动浆液阀，Z673X气动浆液阀主要性能规范r

rr
r

rr
r

rr r r r r r r r r r r r r r r r r r r r r r r r r

r r r公称压力PN（MPa) rr r	r r 试验压力（MPa) rr r		r r 适用介质 rr r	r r r工作温度（℃）r r
	r r 壳体 rr r	r r 密封 rr r
r r 0.6r r	r r 0.9r r	r r 0.66r r	r r 煤浆、粮浆、纸浆、泥浆、活水砂浆、矿渣、碱液 rr r	r r ≤100℃r r
r r 1.0r r	r r 1.5r r	r r 1.1r r

rr
r

rr
r

rr 铸铁气动浆液阀，对夹气动浆液阀，Z673X气动浆液阀构造图及主要外形及连接尺寸(mm)
rr

rr
r

rr
r

rr r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r 公称通径mm rr r	r r Lr r		r r Dr r	r r D1r r	r r Hr r	r r n-Mr r
	r r PN0.6r r	r r PN1.0r r
r r 50r r	r r 48r r	r r 48r r	r r 125r r	r r 100r r	r r 335r r	r r 4-M16r r
r r 65r r	r r 48r r	r r 48r r	r r 145r r	r r 120r r	r r 363r r	r r 4-M16r r
r r 80r r	r r 50r r	r r 50r r	r r 160r r	r r 135r r	r r 395r r	r r 4-M16r r
r r 100r r	r r 50r r	r r 50r r	r r 180r r	r r 155r r	r r 465r r	r r 8-M16r r
r r 125r r	r r 50r r	r r 50r r	r r 210r r	r r 185r r	r r 530r r	r r 8-M16r r
r r 150r r	r r 60r r	r r 60r r	r r 240r r	r r 210r r	r r 630r r	r r 8-M20r r
r r 200r r	r r 60r r	r r 60r r	r r 295r r	r r 265r r	r r 750r r	r r 8-M20r r
r r 250r r	r r 70r r	r r 70r r	r r 350r r	r r 318r r	r r 900r r	r r 12-M20r r
r r 300r r	r r 70r r	r r 80r r	r r 400r r	r r 368r r	r r 1120r r	r r 12-M20r r
r r 350r r	r r 80r r	r r 80r r	r r 460r r	r r 430r r	r r 1260r r	r r 16-M20r r
r r 400r r	r r 90r r	r r 90r r	r r 515r r	r r 482r r	r r 1450r r	r r 16-M22r r
r r 450r r	r r 90r r	r r 120r r	r r 565r r	r r 532r r	r r 1600r r	r r 20-M22r r
r r 500r r	r r 90r r	r r 130r r	r r 620r r	r r 585r r	r r 1800r r	r r 20-M22r r
r r 600r r	r r 140r r	r r 140r r	r r 725r r	r r 685r r	r r 2300r r	r r 20-M27r r
r r 700r r	r r 140r r	r r 140r r	r r 840r r	r r 800r r	r r 2500r r	r r 24-M27r r
r r 800r r	r r 190r r	r r 190r r	r r 950r r	r r 898r r	r r 2800r r	r r 24-M30r r
r r 900r r	r r 203r r	r r 203r r	r r 1050r r	r r 1005r r	r r 3100r r	r r 28-M30r r
r r 1000r r	r r 216r r	r r 216r r	r r 1160r r	r r 1115r r	r r 3400r r	r r 28-M30r r
r r 1200r r	r r 254r r	r r 254r r	r r 1380r r	r r 1325r r	r r 3600r r	r r 32-M36r r
