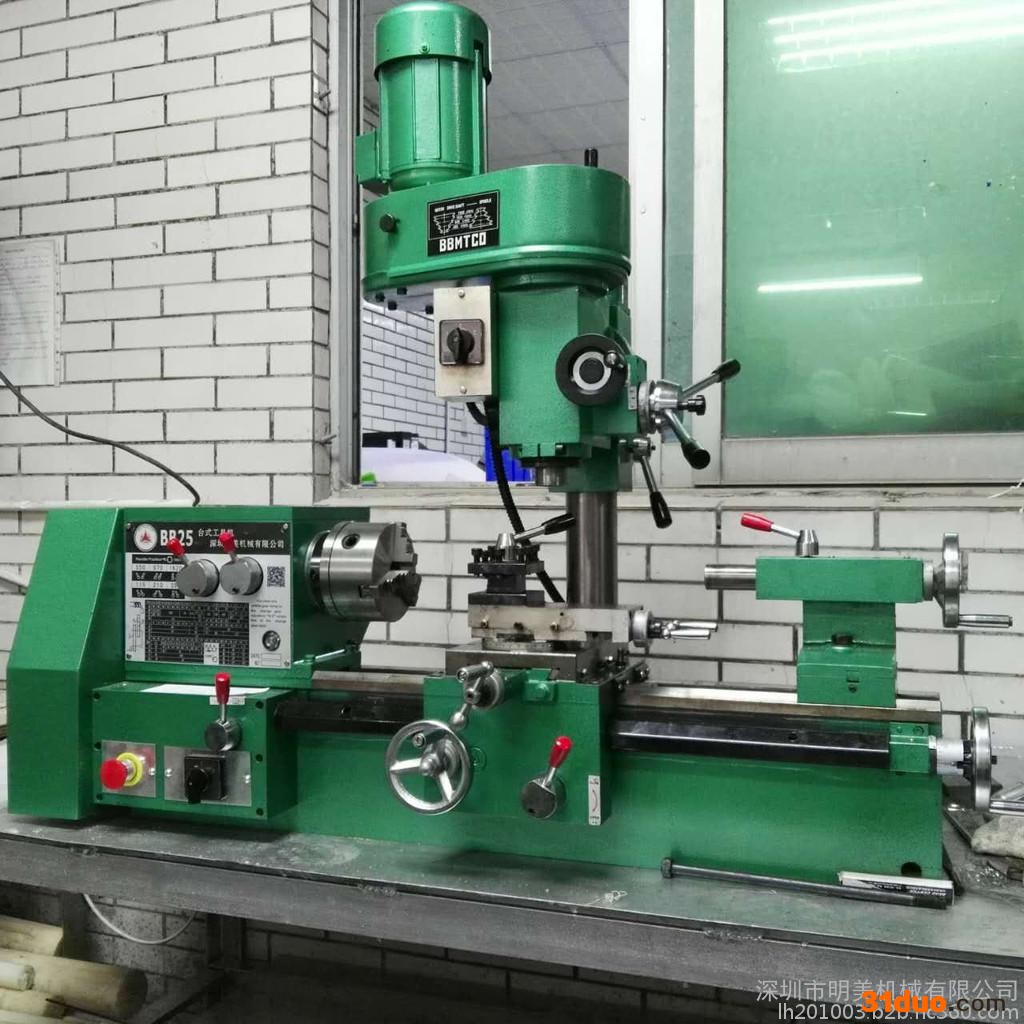

供应精星台式YC25-3多功能机床

2021-07-03 07:45807

信息概况

CUTTING	??床身上**大回转直径 Max.swing diameter over bed		??250mm??
	??刀架上**大回转直径 Max.workpiece diameter over carriage		??130mm
	??**大工件长度 Max.length of workpiece between centres		??450mm/700mm
	??**大切削长度 Max.cutting length		??420mm/660mm
	??主轴锥孔锥度/通孔 Taper of hole in spindle/Hole		??No.4/27mm
	??主轴转速范围 Range of spindle Speed(6 steps)		??6级(level)115-1620r/min
	??纵向进给量范围 Range of carriage longitudinal feed per reveiution of spindle		??0.5-0.1/z/r
	车削螺纹范围	（公制/英制）Range of screw thread (metric/inch)(20kinds)	??20级(level)0.2-3.5/8-56t.p.i
		?模数Range of screw thread(mod)(10kinds)	??10级(level)0.2-1.25
	??电机 Motor		??370W/550W
钻削铣削 DRILLING MILLING	??**大钻孔直径 Max.drilling diameter		??16mm
	??**大立铣刀直径 Max.diameter of vertical milling cutter		??20mm
	??**大立铣刀盘直径 Max.diameter of vertical milling face		??63mm
	??主轴锥孔锥度 Taper of hole in spindle nose		??No.3
	??主轴箱移动过程 Max.distance between spindle box		??160mm
	??主轴套筒移动过程 Max.quill movement of spindle		??80mm
	??主轴箱水平回转角度 Max.horizontal rotation of spindle box around column		??±180度
	??主轴箱左右倾斜角度 Max.inclination of spindle box(left right)		??±90度
	??主轴转速范围 Range of spindle speed(4 steps)		??4级400-1640r/min
	??电机 Motor		??370W
净重 NET WEIGHT	??AB25-1 Machine net weight		??135kg,150kg
	??AB25-3 Machine net weight		??210kg,230kg
