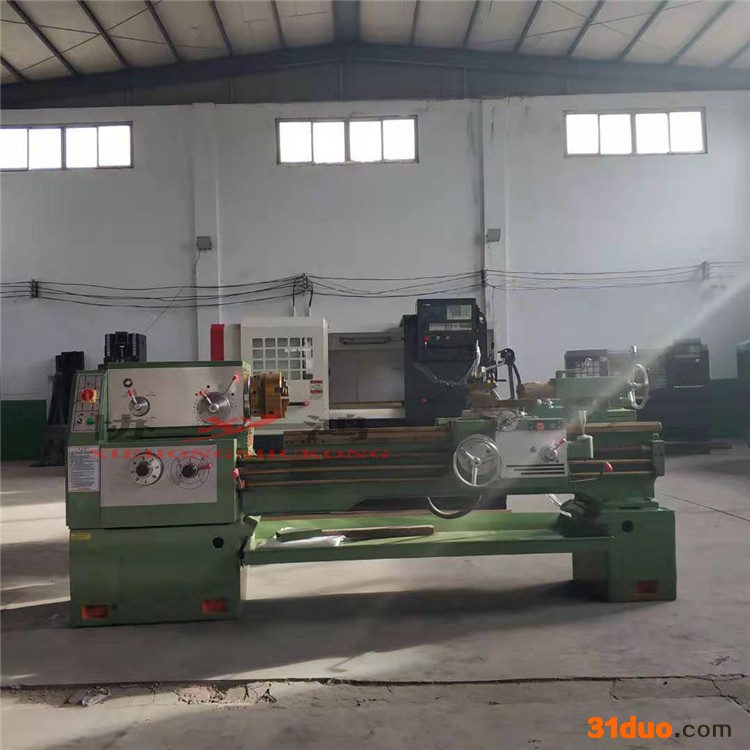

r 本公司供应协鸿机床协鸿机床 落地式 立式 全新 人工 普通车床，质量保证，欢迎咨询洽谈。r

rr r 产品主要技术参数:r

r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r 技术参数Specificationsr r		r r CA6140 CA6140Br r	r r CA6240 CA6240Br r
r r 床身最大工件直径Max. Swing over bedr r		r r 400mmr r
r r 刀架上最大工件直径Max. Swing over carriager r		r r 210mmr r
r r 马鞍槽最大工件直径Max. swing in gapr r		r r --r r	r r 630mmr r
r r 马鞍槽有效长度Effective gap lengthr r		r r --r r	r r 210mmr r
r r 最大工件长度Max. length of work piecer r		r r 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mmr r
r r 床身宽度Width of bedr r		r r 400mmr r
r r 刀杆截面Section of turning toolr r		r r 25x25mmr r
r r 主轴r r r Spindler r	r r 主轴转速范围Spindle speedsr r	r r 10-1400rpm/16-1400rpm（24steps）r r
	r r 主轴内孔Hole through spindler r	r r 52mm.（80mm）. [105mm]r r
	r r 主轴孔锥度Spindle taperr r	r r 莫式NO.6（MT6）（Φ90 1：20）[Φ113 1：20]r r
r r 进给r r r Feedr r	r r 进给数量Number of feedsr r	r r 64种（kinds）（for each）r r
	r r 公制螺纹Range of metric threads（kinds）r r	r r （1-96mm）44种（44kinds）r r
	r r 英制螺纹Range of inch threads（kinds）r r	r r （2-24tpi）21种（21kinds）r r
	r r 模数螺纹Range of module threads（kinds）r r	r r 0.25-48(模数39种)(Moduie39kinds)r r
	r r 径节螺纹Range of  pitch threads（kinds）r r	r r 1-96DP(37种)（37kinds）r r
r r 尾座r r r Tailstockr r	r r 尾座主轴最大行程Max. tail stock spindle travelr r	r r 150mmr r
	r r 尾座主轴直径Tail stock spindle diameterr r	r r 75mmr r
	r r 尾座主轴孔锥度Taper of tail stock spindle center holer r	r r 莫氏NO.5(MT5)r r
r r 主电机Main motorr r		r r 7.5KW(10HP)r r
r r 包装尺寸r r r Packing dimensions (L*W*Hmm)r r	r r Overall dimensions for750mmr r	r r 2550x1140x1750r r
	r r Overall dimensions for1000mmr r	r r 2700x1140x1750r r
	r r Overall dimensions for1500mmr r	r r 3200x1140x1750r r
	r r Overall dimensions for2000mmr r	r r 3700x1140x1750r r
	r r Overall dimensions for2200mmr r	r r 4030x1140x1750r r
	r r Overall dimensions for3000mmr r	r r 4850x1140x1750r r
	r r Overall dimensions for4000mmr r	r r 5800x1140x1750r r
r r 重量r r r Weight (kg)r r	r r Lengthr r	r r 毛重  净重r r r G.W  N.W.r r
	r r Weight for 750mmr r	r r 2100  1990r r
	r r Weight for 1000mmr r	r r 2190  2070r r
	r r Weight for 1500mmr r	r r 2350  2220r r
	r r Weight for 2000mmr r	r r 2720  2570r r
	r r Weight for 2200mmr r	r r 2800  2600r r
	r r Weight for 3000mmr r	r r 3300  3200r r
	r r Weight for 4000mmr r	r r 3500  3400r r r  r r r rr r
