| 工作电流:10A / 6A | 加工定制:否 |
| 材质:PA+30%GF | 防护等级:IP65 |
| 触点材质:CuZn(Sn) | 类型:防水仪表盒 |
| 适用范围:变送器 电磁阀 | 外形尺寸:27X27X34(mm) |

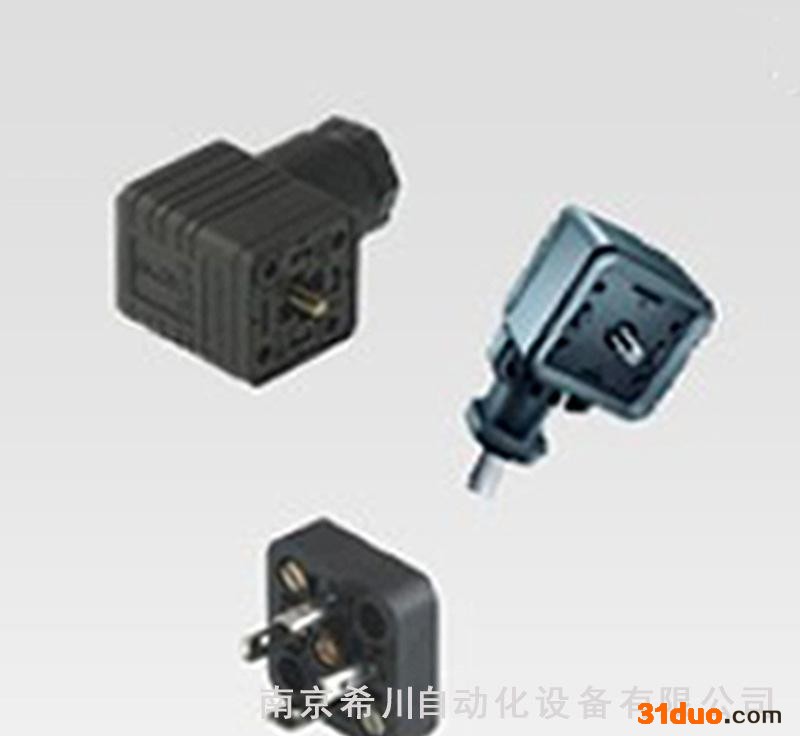

南京希川自动化设备有限公司专业提供电磁阀、变送器用德国Hirschmann赫斯曼工业连接器 赫斯曼接头 电磁阀插头。本系列产品符合德国DIN43650/EN175301-803标准,A、B、C三个子系列,可以适用于各种电磁阀,液压阀,压力变送器,温度变送器,压力开关,压力传感器,机械设备等,互换性强,可以满足不同客户、不同场合的需求。有各种普通黑色,透明带指示灯,带电路保护,带整流器的插头可选。
A型——2+PE/3+PE;插针间距为18mm,圆形或方型底座,广泛应用于液压阀,电磁阀,比例阀,压力传感器及变送器,温度传感器等领域。额定电流10A,电缆密封管PG9/PG11,适用电缆直径6-8mm/8-10mm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
B型——2+PE;插针间距有两种规格9mm或11mm,该产品在电磁阀,液压阀,比例阀,伺服阀等领域有广泛应用。额定电流10A,电缆密封管PG9,适用电缆直径6-8mmm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
C型——2+PE/3+PE;插针间距为8mm或9.4mm;该系列产品外形精致小巧,插拔方便,价格便宜。广泛应用于压力、温度等各种自动化测量领域。额定电流6A,电缆密封管PG7,适用电缆直径4-6mm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
其他连接器产品有M12系列传感器用连接器,M16系列机械设备用小型圆形连接器,比例阀用连接器,M27机械设备用圆形连接器,M23编码器连接器
南京希川自动化设备有限公司联系方式:单先生 电话:025-58607989 手机:18751808105 传真:025-58402959 QQ:2496603078 公司主页:地址:江苏省南京市浦口区大桥北路9号。可以为您提供专业的压力、温度、流量、液位、连接器、HIRSCHMANN赫斯曼接头等工业自动化产品的服务与技术支持。 Hydraulic, pneumatic and electromagnetic actuators and sensors – wher
e hardness meets hardness, the GDM-series is fully within its element. And for this reason, the rectangular co
nnector with a high loading capacity is especially well-suited for use with solenoid valves, pressure sensors, flow co
ntrollers and in heating equipment in co
ntrol systems for gas appliances and oil burners. Even in vibration-endangered devices and structural compo
nents such as co
nstruction machines or in co
nveyor installations, it is possible to have a highly durable solution with the use of crimp technology.
With built-in electro
nic compo
nents such as rectifiers, optical status displays and protective elements, the GDM-series can be co
nnected to devices wher
e these functions have not been integrated. And last but not least, the GDM-series can be used wher
ever a “me
tal-free” enviro
nment is required, for example in the food sector and the chemical industry.
The GDM-series is used wher
ever rectangular co
nnectors have to have resilient qualities, such as for example on drilling rigs, co
nveyor installations or in co
nstruction machines.
The rectangular co
nnector with a large range of cable diameters from 4.5mm to 14 mm is protected against dust and sprayed water with vibration-free locking with a central screw; a knurled screw can also be supplied for use without tools. The valve professio
nal for pneumatic and hydraulic systems. Durability tests successful: the GDM-series can outplug many others.












德国hirschmann赫斯曼工业连接器GDM 2016 (934 393-100)
GDM 2009 (931 965-100)
GDM 2009 J (931 236-100)
GDM 2011 (931 957-100)
GDM 2011 J (932 106-100)
GDM 2012 J (934 441-100)
GDM 2014 J (932 107-100)
GDM 3016 (934 395-100)
GDM 3009 (931 969-100)
GDM 3009 J (932 214-100)
GDM 3011 (931 952-100)
GDM 3011 J (932 109-100)
GDM 3012 J (932 519-100)
GDM 3014 J (932 110-100)
GSA 2000 N (932 967-100)
GSA 3000 (932 597-100)
GDML 2011 GB1 LED 24 (932 446-002)
GDML 2011 LED 24 GB (932 501-002)
GDML 2011 LED 24 (932 332-002)
GDML 2011 LED 24 YE (932 527-002)
GDML 2011 LED 24 HH P (932 444-002)
GDML 2011 LED 24 HH (932 336-002)
GDML 2011 LED 24 HH YE (932 640-002)
GDML 2011 LED 24 VR VE (933 737-212)
GDML 2011 LED 24 VR (932 521-002)
GDML 2011 LED 48 HH (932 648-002)
GDML 2011 LED 48 VR (933 924-212)
GDML 2011 LED 48 VR VE (933 926-212)
GDML 2011 GB1 LED 48 (933 925-212)
GDML 2011 LED 120 YE (933 738-212)
GDML 2011 LED 120 VR YE (933 927-212)
GDML 2011 LED 230 YE (933 739-212)
GDML 2011 LED 230 VR YE (933 916-212)
GDML 3011 LED 24 BO (932 856-002)
GDML 3011 LED 24 RG (932 857-002)
GDML 3011 LED 230 RG (933 748-212)
GDME 2011 (933 029-100)
GDME 2013 (933 030-100)
GDME 3011 (933 022-100)
GDME 3013 (933 031-100) 南京希川自动化设备有限公司地址:江苏省南京市浦口区大桥北路9号。Tel:025-58607989Mob:18751808105Fax:025-58402959QQ:2496603078可以为您提供专业的工业自动化仪器仪表的服务与技术支持:德国Hirschmann赫斯曼工业连接器 赫斯曼接头 电磁阀插头。
