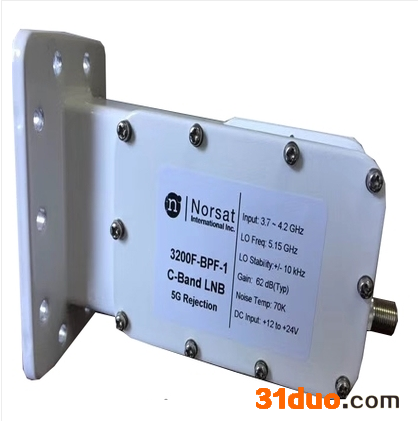

3200F/N-BPF-3内嵌滤波器高频头是Norsat为了抵御5G基站信号对 LNB地球站C波段信号干扰而推出的的低噪声下变频器（高频头）加上带通滤波器为 LNB通信提供稳定信号接收，同时在C波段3.754 - 4.20 GHz内抑制干扰 3200F/N-BPF-3内嵌滤波器高频头是Norsat提供优质的性能和可靠性在小的形式因素可能。 Norsat品牌作为业界的高性能微波器件供应商，有近四十年高频微波领域的制造经验，可以提供3年的保修期，让用户后顾无忧。
产品数据：
| KEY SPECIFICATIONS |
| Product Family | 3000F/N-BPF-3 Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | ± 25 kHz max. |
| Noise Figure | 60K |
| Input Frequency - Band 1 | C-Band: 3.754 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1396 MHz |
|
| RF SPECIFICATIONS |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | -80 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 55 - 70 dBm |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 9 dBm |
|
| ELECTRICAL SPECIFICATIONS |
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
|
| INTERFACE SPECIFICATIONS |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | F-75 Ohm |
|
| ENVIRonMENTAL SPECIFICATIONS |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | - 40 to + 80°C |
|
| PHYSICAL SPECIFICATIONS |
| Dimensions (L x W x H) | 159 x 98.5 x70 mm |
| Weight | 500 g
|
