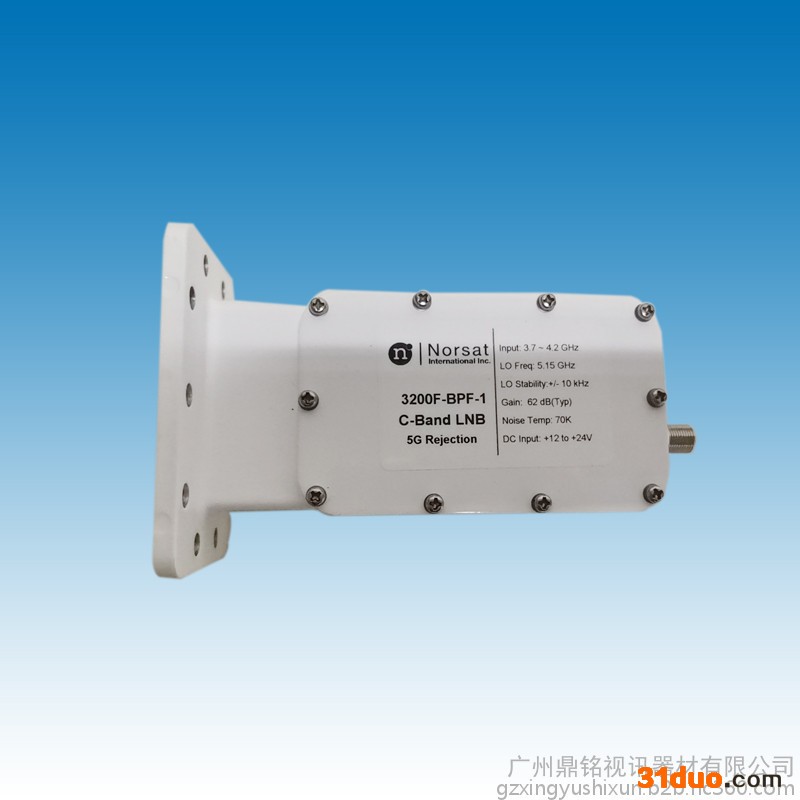

产品名称：抗干扰滤波一体高频头 产品型号：3200-BPF-1
产品描述：
3200-BPF-1抗5G干扰高频头 :该系列C波段锁相环(PLL)低噪声下变频器(LNB)可以在不影响性能的前提下,可将5G干扰信号降至-20 dBm。
3200-BPF-1款高性能LNB与Norsat的BPF-C滤波器配合使用具有更好的抑制效果。
根据上图选择适合自己的型号
技术指标：
| KEY SPECIFICATIONS |
| Product Family | 3200-BPF-1 Series |
| Band | C-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | ± 10 kHz max. |
| Input Frequency - Band 1 | C-Band: 3.700 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
|
| RF SPECIFICATIONS |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | -80 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 55 - 70 dBm |
| Input VSWR | 2.5 : 1 max. |
| Output VSWR | 2.5 : 1 max. |
| Output P1dB compression point | 9 dBm |
|
| ELECTRICAL SPECIFICATIONS |
| Power Requirements | 12 - 24 V |
| Current Drain | 300 mA max. |
|
| INTERFACE SPECIFICATIONS |
| RF Input Connector | CPR 229G |
| RF Output Connector | F-75 Ohm |
|
| ENVIRonMENTAL SPECIFICATIONS |
| Temperature - Operational | - 40 to + 60?C |
|
| PHYSICAL SPECIFICATIONS |
| Dimensions (L x W x H) | 144 x 70 x 98 mm |
| Weight | 0.5 kg |
带滤波高频头有部分现货，大批量订货货期约6-10周 欢迎有需要的机构和我们商洽
