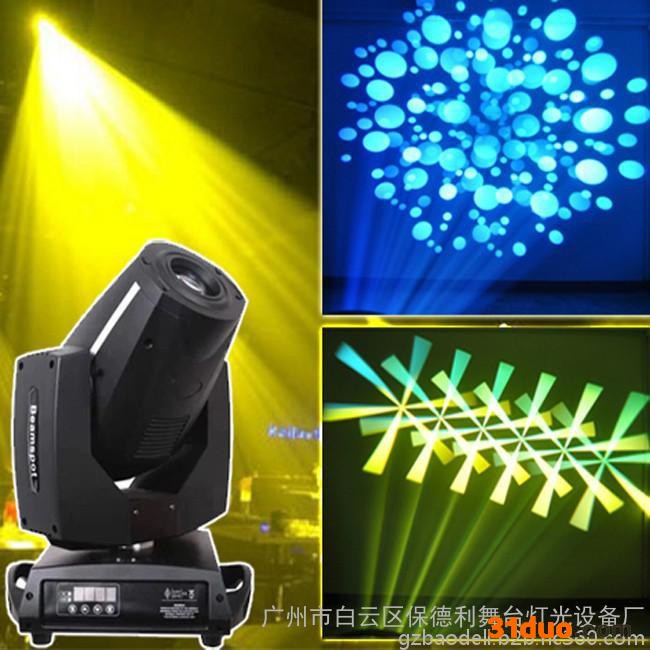

3028-280W图案光束灯

技术参数
输入电压：100V-240V/50-60HZ
额定功率：400W
灯    泡：OSRAM HRI 280W 9R
水平扫描：540°(16bit精度扫描)
垂直扫描：270° (16bit精度扫描)
通道数量：2 DMX Modes 17/15Channels DMX
控制方式：17个国际标准DMX512控制，主从模式，自走模式。
LED红色点阵显示控制面板，四个轻触开关，可倒转180°
DMX 3芯信号输入
颜   色：一个色盘，由17个色片+白光，带双向旋转的彩虹效果
旋转图案盘：17个图案效果，9个旋转图案效果，带图案抖动和图案任意定位功能
频    闪：频率**高可以0.5-9次每秒，并可选择随机频闪及脉冲频闪
棱镜盘：一个可旋转的4棱镜，可正反方向旋转
调光：0%~**线性调光
雾化：0%~**线性雾化
防护等级：IP20
包装尺寸：55cmX35cmX58cm

净    重：19kg

280 w beam lightsTechnical parametersThe input voltage: 100 v to 240 v / 50 to 60 hzRated power: 400 wLight bubble: OSRAM HRI 280 w 9 rHorizontal: 540 ° (16 bit precision scan)Vertical scanning: 270 ° (16 bit precision scan)The number of channels: 2 DMX Modes 17/15 channels DMXControl mode: 17 international standard DMX512 control, master-slave mode, the mode.Red LED dot matrix display control panel, four light touch switch, reversing 180 °Three core DMX signal inputColours: a color wheel, by 17 color + white light, with two-way rotation of rainbow effectPattern plate rotating: 17 design effect, nine rotation pattern effect, with the function of pattern jitter and arbitrary orientationStroboscopic: highest frequency can be 0.5-9 times per second, and can choose random stroboscopic and pulse frequency flashPrism plate: a rotatable 4 prism, can be positive and negative direction of rotationLinear dimming: 0% ~ 0% dimmerA linear atomization atomization: 0% ~ **Protection grade: IP20Packing size: 55 cmx35cmx58cmNet weight: 19 kg
