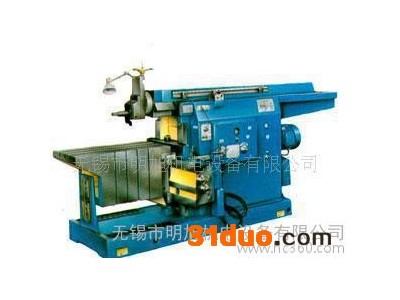

规格型号 Model | BYS60100 | BYS60120 | BYS60150 | |
| **大刨削长度 Max. shaping length | 1000mm | 1200mm | 1500mm | |
| 滑枕底面至工作台面**大距离 Max. distance from lower edge of ram to table | 400mm | 400mm | 450mm | |
| 工作台上平面尺寸（长×宽） Dimension of top table (L×W) | 1000×500mm | 1200×500mm | 1500×700mm | |
| 工作台**大移动距离 Max. travel of table | 水平 Horizontal | 800mm | 800mm | 1100mm |
| 垂直 Vertical | 320mm | 320mm | 440mm | |
| 刀架**大垂直行程 Max. vertical travel of tool head | 160mm | 160mm | 160mm | |
| 刀架**大回转角度(在不入床身时) Max. swivel of tool head (out of column) | ±60° | ±60° | ±60° | |
| 滑枕**大工作压力 Max. cutting force of ram | 28000N | 28000N | 28000N | |
| 滑枕无级变速范围 Range step change of ram | 3-37m/min | 3-37m/min | 3-37m/min | |
| 滑枕往复一次工作台进给量 Table feed per ram stroke | 水平 Horizontal | 0-3.5mm | 0-3.5mm | 0-3.6mm |
| 垂直 Vertical | 0-0.35mm | 0-0.35mm | 0-0.32mm | |
| 工作台快速移动速度 Speed of rapid traveling | 水平 Horizontal | 2.9m/min | 2.9m/min | 2.85m/min |
| 垂直 Vertical | 0.26m/min | 0.26m/min | 0.255m/min | |
| 主传动电机 Motor of main transmission | 7.5Kw,970rpm | 7.5Kw,970rpm | 7.5Kw,970rpm | |
| 工作台快移电机 Motor of rapid traveling table | 0.75 Kw,1420rpm | 1.1 Kw,1420rpm | 1.5 Kw,1420rpm | |
| 机床外形尺寸(长×宽×高) Overall dimensions (L×W×H) | 3660×1560×1835mm | 4630×2040×2995mm | 5160×2017×2050mm | |
| 净重 Net weight | 4200kg | 5000kg | 7500kg | |
