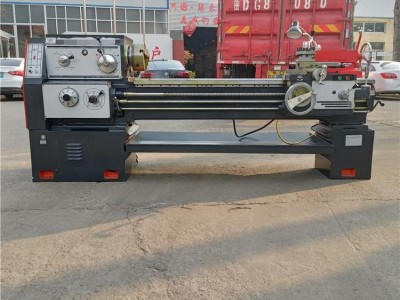

| 普通车床型号 Model | CA6140 CA6140B | CA6240 CA6240B | CA6150 CA6150B | CA6250 CA6250B | |
| 床身上工件直径 Max. Swing over bed | 400mm | 500mm | |||
| 刀架上工件直径 Max. Swing over carriage | 210mm | 300mm | |||
| 马鞍槽工件直径 Max. Swing in gap | - | 630mm | - | 720mm | |
| 马鞍槽有效长度 Effective gap length | - | 210mm | - | 210mm | |
| 工件长度 Max. Length of workpiece | 750mm or 1000mm or 1500mm or 2000mm or 3000mm | ||||
| 床身宽度 Width of bed | 400mm | ||||
| 刀杆截面 Section of turning tool | 25X25mm | ||||
| 主轴 Spindle | 主轴转速范围 Spindle speeds | 11—1600 r/min (24 steps) | |||
| 主轴内孔 Hole though spindle | 52mm(80mm) | ||||
| 主轴孔锥度 Spindle taper | Morse No.6 (莫氏6号) | ||||
| 进给 Feed | 进给数量 No. of feeds | 64种(kinds)(for each) | |||
| 公制螺纹Range of metric threads (kinds) | (1-192mm)44种(44kinds) | ||||
| 英制螺纹 Range of inch threads(kinds) | (1-24tpi)21种(21kinds) | ||||
| 模数螺纹 Rage of module threads(kinds) | 0.25-48(模数39种)(Module 39 kinds) | ||||
| 径节螺纹 Rage of Diametral pitc threads (kinds) | 1-96DP(37种)(37 kinds) | ||||
| 床尾 Tailstock | 床尾主轴行程 Max tailstock spindle travel | 150mm | |||
| 床尾主轴直径 Tailstock spindle diameter | 75mm | ||||
| 床尾主轴孔锥度 | Morse No.5 (莫氏5号) | ||||
| 主电机 Main motor | 7.5KW(10HP) | ||||
| 包装外形尺寸 Picking dimensions (L×M×H mm) | Overall dimensions for 750 | 2440x1150X1170 | 2440x1150X1700 | ||
| Overall dimensions for 1000 | 2650x1150X1700 | 2650x1150X1700 | |||
| Overall dimensions for 1500 | 3150x1150X1700 | 3150x1150X1700 | |||
| Overall dimensions for 2000 | 3610x1150X1700 | 3610x1150X1700 | |||
| Overall dimensions for 3000 | 4610x1150X1700 | 4610x1150X1700 | |||
| 重量 Weight (Kg) | Length | 毛重 G.W. 净重 N.W. | |||
| Overall dimensions for 750 | 2700 2000 | 2700 2000 | |||
| Overall dimensions for 1000 | 2800 2100 | 2700 2000 | |||
| Overall dimensions for 1500 | 3050 2250 | 2700 2000 | |||
| Overall dimensions for 2000 | 3300 2600 | 2700 2000 | |||
| Overall dimensions for 3000 | 4000 3450 | 2700 2000 | |||
