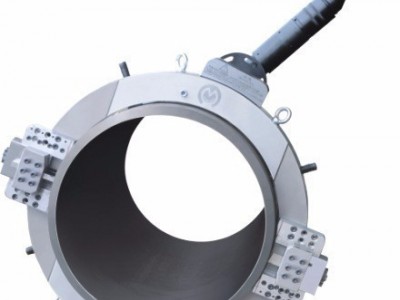

r 外钳式气动管子切割坡口机  外卡式气动管子切割坡口机r

rr r

rr · 产品特点：r

rr ·   本机采用气动马达驱动，特殊设计的传动机构可受力高强度的切削作用，有0.6-0.8Mpa气源即可工作。r

rr ·   本机为轻便式外部安装切割坡口机，具有操作简便、径向空间小等特点。r

rr ·   使用方便，维护简单，安装空间极小，可方便快速的安装在复杂串联管道上进行切割或坡口加工，加工范围广。r

rr ·   主要应用于易燃，易爆炸危险性作业场所，使用安全可靠。r

rr · 加工性能：r

rr ·   能对碳钢、不锈钢、合金钢等管材进行加工。r

rr ·   完全冷加工，丝毫不影响管材加工。r

rr ·   加工效率高，一次装夹即可同步完成切割、坡口作业。r

rr ·   高精度、高质量加工，尺寸精确，光洁度高，加工端面与钢管轴线垂直。r

rr ·   可装配镗孔刀架，进行管内坡口或镗孔加工。r

rr ·  产品应用：
r广泛应用于长输管线、发电厂、核电、石油、化工、天然气、锅炉厂、制药、管道预制厂，以及管道安装工程和抢修作业等。r

rr r

rr r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r 规格r r	r r 加工管径范围（ID-OD）r r		r r 切割坡口壁厚r r	r r 刀盘转速r/minr r	r r 压力MPar r	r r 耗气量L/minr r
r r 89r r	r r φ25～89r r	r r 3/4″-3″r r	r r ≤35r r	r r 50r r	r r 0.6r r	r r 1500r r
r r 159r r	r r φ50～159r r	r r 2″-5″r r	r r ≤35r r	r r 21r r	r r 0.6r r	r r 1500r r
r r 168r r	r r Φ50～168r r	r r 2″-6″r r	r r ≤35r r	r r 21r r	r r 0.6r r	r r 1500r r
r r 230r r	r r φ80～230r r	r r 3″-8″r r	r r ≤35r r	r r 20r r	r r 0.6r r	r r 1500r r
r r 275r r	r r φ125～275r r	r r 5″-10″r r	r r ≤35r r	r r 20r r	r r 0.6r r	r r 1500r r
r r 305r r	r r Φ150-305r r	r r 6″-10″r r	r r ≤35r r	r r 18r r	r r 0.6r r	r r 1500r r
r r 325r r	r r Φ168-325r r	r r 6″-12″r r	r r ≤35r r	r r 16r r	r r 0.6r r	r r 1500r r
r r 377r r	r r Φ219-377r r	r r 8″-14″r r	r r ≤35r r	r r 13r r	r r 0.6r r	r r 1500r r
r r 426r r	r r Φ273-426r r	r r 10″-16″r r	r r ≤35r r	r r 12r r	r r 0.7r r	r r 1800r r
r r 457r r	r r Φ300～457r r	r r 12″-18″r r	r r ≤35r r	r r 12r r	r r 0.7r r	r r 1800r r
r r 508r r	r r φ355～508r r	r r 14″-20″r r	r r ≤35r r	r r 12r r	r r 0.7r r	r r 1800r r
r r 560r r	r r φ400～560r r	r r 16″-22″r r	r r ≤35r r	r r 12r r	r r 0.7r r	r r 1800r r
r r 610r r	r r φ457～610r r	r r 18″-24″r r	r r ≤35r r	r r 11r r	r r 0.7r r	r r 1800r r
r r 630r r	r r φ480～630r r	r r 20″-24″r r	r r ≤35r r	r r 11r r	r r 0.7r r	r r 1800r r
r r 660r r	r r φ508～660r r	r r 20″-26″r r	r r ≤35r r	r r 11r r	r r 0.7r r	r r 1800r r
r r 715r r	r r φ560～715r r	r r 22″-28″r r	r r ≤35r r	r r 11r r	r r 0.7r r	r r 1800r r
r r 762r r	r r φ600～762r r	r r 24″-30″r r	r r ≤35r r	r r 11r r	r r 0.8r r	r r 2000r r
r r 830r r	r r φ660～813r r	r r 26″-32″r r	r r ≤35r r	r r 10r r	r r 0.8r r	r r 2000r r
r r 914r r	r r φ762～914r r	r r 30″-36″r r	r r ≤35r r	r r 10r r	r r 0.8r r	r r 2000r r
r r 1066r r	r r φ914～1066r r	r r 36″-42″r r	r r ≤35r r	r r 9r r	r r 0.8r r	r r 2000r r
r r 1230r r	r r φ1066～1230r r	r r 42″-48″r r	r r ≤35r r	r r 8r r	r r 0.8r r	r r 2000r r
