深圳长寿命氙气灯泡直升机停机坪信号标志灯 ，机场警示灯，停机坪障碍灯，闪光灯，

rrr     1、简介： r

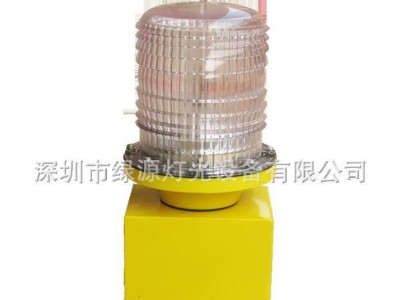

rr     GS-HP/B灯标，外壳采用不锈钢烤漆而成。光源采用氙气灯管，使用寿命长达108次；该产品能在夜间或能见度低的白天发出全向白光信号，明确指示直升机停机坪的所在位置。 r

rr       r

rr     2、技术规格： r

r    r    rr r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r                 r r                     名称                 r r            r	r                 r r                     参数                 r r            r
r                 r r                     型号                 r r            r	r                 r r                     GS-HP/B                 r r            r
r                 r r                     电源                 r r            r	r                 r r                     AC220V                  r r            r
r                 r r                     电源频率                 r r            r	r                 r r                     50HZ～60HZ                 r r            r
r                 r r                     平均功耗                 r r            r	r                 r r                     ≤20W                 r r            r
r                 r r                     工作方式                 r r            r	r                 r r                     4次/2秒                 r r            r
r                 r r                     光强                 r r            r	r                 r r                     ≥2500CD                 r r            r
r                 r r                     光源寿命                 r r            r	r                 r r                     ≥10年                 r r            r
r                 r r                     发光颜色                 r r            r	r                 r r                     白色                 r r            r
r                 r r                     外形尺寸                 r r            r	r                 r r                     200mm×200mm×410mm                 r r            r
r                 r r                     安装尺寸                 r r            r	r                 r r                     ￠100mm×M10                 r r            r
r                 r r                     防护等级                 r r            r	r                 r r                     IP65                 r r            r
r                 r r                     环境温度                 r r            r	r                 r r                     -20℃～60℃                 r r            r
r                 r r                     重量                 r r            r	r                 r r                     2.4KG                 r r            r
r                 r r                     湿度                 r r            r	r                 r r                     ＜95%                 r r            r
r                 r r                     海拔                 r r            r	r                 r r                     ＜4500M                 r r            r

rr       r

rr     3、 功能及特点： r

rr      ● 采用进口氙气光源，寿命可达108次。 r

rr      ● 光源采用插拔式安装，维护简单、安全。 r

rr      ●标准化光学设计，光电转换效率高。 r

rr      ● 外壳采用SUS304不锈钢材料烤漆制造而成，重量轻，耐腐蚀。 r

rr      ●具有抗冲击、防雷电、耐日晒、抗雨雪、可抵抗台风、冰雹 r

rr     等恶劣天气的侵袭。 r

rr     ● 产品采用变压器隔离降压，所有电路工作在低电压状态可提高电路及光源使用寿命。 r

rr     ● 产品为易折设计，能有效降低对直升机的二次伤害。 r

rr     ● 底盘安装孔为弧形可调设计，便于安装。 r

rr     ● 灯罩采用PC材料，耐腐蚀、抗UV。 r
