供应**环保型阻燃电工胶粘带

r r 高级环保型阻燃电工胶粘带r

r r 特性:r

r r UM系列高级环保型阻燃电工胶粘带是由优质的增塑型PVC环保薄膜涂布高性能橡胶型压敏胶制作而成，具有优良的电气性能、阻燃性及柔软性，不受大多数化学物质及湿气的影响。符合ROHS指令要求。可避免普通电工胶带中铅、镉等有毒物质对人体的慢性伤害，确保使用者的长期安全。r

r r  r

r r 用途:r

r r 用于绑扎电线和电缆；适用于室内或室外；用于电压等级600V以下的所有电线和电缆接头的主绝缘；用于修补高压接头的护套；用于600V级以下电气绝缘电线电缆相识表色；以半重叠方式缠绕，缠最后一层时，不要过度拉伸，以防翘头。耐电压等级为600伏级以下。r

r r  r

r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r 技术指标：UM130r r
r r 性能r r	r r 典型数据r r	r r 单位r r	r r 测试方法r r
r r 性能r r	r r 0.13r r	r r mmr r	r r ASTM-D-1000r r
r r 总厚度r r	r r 22r r	r r N/cmr r	r r ASTM-D-1000r r
r r 拉伸强度r r	r r 200r r	r r %r r	r r ASTM-D-1000r r
r r 伸长率r r
r r 剥离强度:r r	r r 1.5r r	r r N/cmr r	r r ASTM-D-1000r r
r r . 对钢板r r	r r 1.5r r	r r N/cmr r	r r ASTM-D-1000r r
r r . 对基材r r	r r 600r r	r r Vr r	r r UL510r r
r r 耐电压等级r r	r r 80r r	r r ℃r r	r r ASTM-D-1000r r
r r 耐温等级r r	r r 2r r	r r sr r	r r ASTM-D-1000r r
r r 耐燃烧性r r
r r 重金属含量:r r	r r 30r r	r r ppmr r	r r USr EPA3052r r
r r .铅，镉r r	r r 10r r	r r ppmr r	r r US EPA3060Ar r
r r .汞，六价铬r r	r r 10r r	r r ppmr r	r r US EPA3540Cr r

r r 敬告客户：以上所有数据及信息是基于我们的测试结果，用户在使用之前必须针对所期望的r

r r 用途确定产品的适用性。r

r r  r

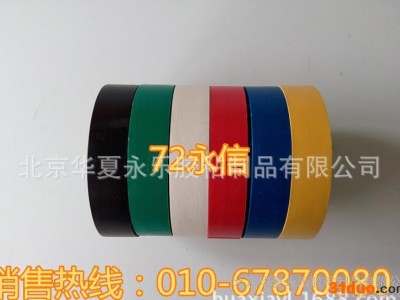

r r 颜色：黑、红、黄、蓝、绿、白 r

r r  r

r r 表面结构：雾面印永乐商标r

r r  r

r r 储存期：23℃X50RH下，在原包装箱中可储存12个月。r

r r  r

r r 常规规格：r

r r  r

r r r r r r r r r r r r r r r r r r r r r r r r

r r 宽度r r	r r 长度r r	r r 纸芯内径r r
r r 19mmr r	r r 10mr r	r r 32mmr r
r r 19mmr r	r r 20mr r	r r 32mmr r
r r 19mmr r	r r 33mr r	r r 32mmr r

r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r 性能r r	r r 单位r r	r r 典型数据r r							r r 测试方法r r
r r 性能r r		r r UM110r r	r r UM130r r		r r UM150r r	r r UM165r r		r r UM180r r
r r 总厚度r r	r r mmr r	r r 0.11r r	r r 0.13r r		r r 0.15r r	r r 0.165r r		r r 0.18r r	r r ASTM-D-1000r r
r r 拉伸强度r r	r r N/cmr r	r r 20r r	r r 22r r		r r 25r r	r r 28r r		r r 30r r	r r ASTM-D-1000r r
r r 伸长率r r	r r %r r	r r 200r r	r r 200r r		r r 220r r	r r 250r r		r r 250r r	r r ASTM-D-1000r r
r r 剥离强度:r r
r r . 对钢板r r	r r N/cmr r	r r 1.8r r	r r 1.8r r	r r 1.8r r		r r 1.8r r	r r 1.8r r		r r ASTM-D-1000r r
r r . 对基材r r	r r N/cmr r	r r 1.8r r	r r 1.8r r	r r 1.8r r		r r 1.8r r	r r 1.8r r		r r ASTM-D-1000r r
r r 耐电压等级r r	r r Vr r	r r 600r r	r r 600r r	r r 600r r		r r 600r r	r r 600r r		r r UL510r r
r r 耐电强度r r	r r KV/mmr r	r r 45r r	r r 45r r	r r 48r r		r r 48r r	r r 45r r		r r ASTM-D-1000r r
r r 耐温等级r r	r r ℃r r	r r 80r r	r r 80r r	r r 80r r		r r 80r r	r r 80r r		r r ASTM-D-1000r r
r r 耐燃烧性r r	r r sr r	r r 2r r	r r 2r r	r r 2r r		r r 2r r	r r 2r r		r r ASTM-D-1000r r
r r 重金属含量:r r
r r .铅，镉r r	r r ppmr r	r r 30r r	r r 30r r	r r 30r r		r r 30r r	r r 30r r		r r US EPA3052r r
r r .汞，六价铬r r	r r ppmr r	r r 10r r	r r 10r r	r r 10r r		r r 10r r	r r 10r r		r r US EPA3060Ar r
r r . PPB,PBDEr r	r r ppmr r	r r 10r r	r r 10r r	r r 10r r		r r 10r r	r r 10r r		r r US EPA3540Cr r
