主要特点
- 功率大、频率低、透热性好。主要用于锻造，熔炼,淬火各种金属产品。
- 100%满负载，24小时持续工作。
- 体积小，效率高，耗电省，安装操作简单方便。
- 全固态IGBT变频及功率调节，实现频率自动跟踪。
- 过压、过流、过热、缺水、缺相等多种自动保护功能，确保设备可靠性。
- 手动、自动任意调节，提高工件加热质量以及加热的重复性和连续性。
Main Features
- High power, low frequency and good diathermancy.Mainly used for heating forging,heating melting,heating treating various metal material.
- The absolute load merit rate design, 100% duty cycle and 24 hours continuous work.
- Small size,high efficiency, economize on power, easily installed and simply operating.
- Adopted IGBT inverting device tracks frequency automatically.
- Complete protection from over voltage, over current, lack of water, phase fail, overheating, etc.
- Manual or automatic regulating,enhances the workpiece heating quality,the heating repeatability and the continuity.
主要技术参数Main Technical Parameters
| 型号Type | 输入电压The input voltage | 输出最大功率The max output power | 振荡频率Fluctuatingfrequency | 冷却水压The pressure of cooling water | 主机/分机重量The main/Extension weight | 进水水温The input water temperature |
| KIM-15AB | 3- phase,380-440V | 15KW | 1-20KHZ | 0.02MPA | 20kg/30kg | <40℃ |
| KIM-25AB | 3- phase,380-440V | 25KW | 1-20KHZ | 0.02MPA | 28kg/30kg | <40℃ |
| KIM-35AB | 3- phase,380-440V | 35KW | 1-20KHZ | 0.03MPA | 43kg/50kg | <40℃ |
| KIM-45AB | 3- phase,380-440V | 45KW | 1-20KHZ | 0.03MPA | 50kg/55kg | <40℃ |
| KIM-70AB | 3- phase,380-440V | 70KW | 1-20KHZ | 0.05MPA | 70kg/60kg | <40℃ |
| KIM-90AB | 3- phase,380-440V | 90KW | 1-20KHZ | 0.05MPA | 75kg/65kg | <40℃ |
| KIM-110AB | 3- phase380-440V | 110KW | 1-20KHZ | 0.05MPA | 80kg/70kg | <40℃ |
| KIM-160AB | 3- phase380-440V | 160KW | 0.5-10KHZ | 0.05MPA | 85kg/75kg | <40℃ |
| KIM-260AB | 3- phase380-440V | 260KW | 0.5-10KHZ | 0.06MPA | 190kg/160 | <40℃ |
| KIM-360AB | 3- phase380-440V | 360KW | 0.5-10KHZ | 0.06MPA | 250kg/200kg | <40℃ |
KIM-15KW & 25KW
KIM-35KW & 45KW
倾倒式中频熔 Melting Furnace-Dumping Type

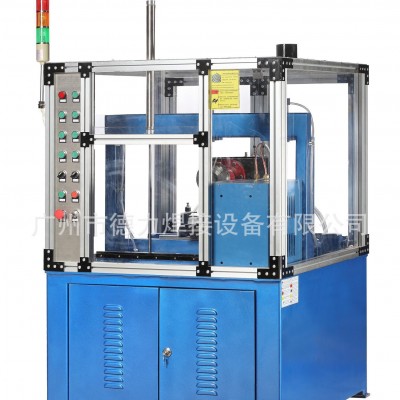

自动锻造机Automatic Forging Machine
顶出式中频熔炉Melting Furnace-ladling Type
