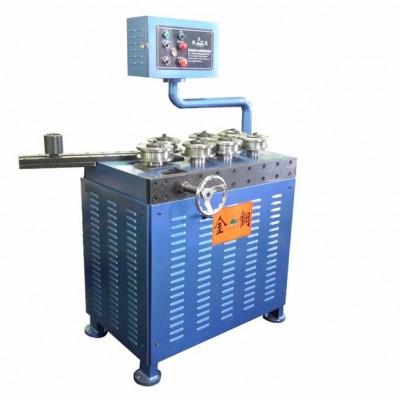

新圩金钢机械 轮卧式滚圆机

r 七 轮 卧 式 滚 圆 机r

rr  r

rr  r

rr
r主要技术参数r

rr 1.弯曲直径可任意选择调整，从φ250mm至2000mm。φ250mm以上和2000mm以下可依客户需要制作。r

rr 2.滚圆真圆度,**圈至**一圈在±1.0mm平面度在±1.0mm左右。r

rr r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r r

r r Main Features and Technical Parameters of Vertical Rolling Machiner r
r r Ⅰ.Features:r r r 1. Bending diameter can be adjusted freely from ∮250mm to 2000mm .As to special requirements smaller than 250 or larger tban 2000mm, we can design and produce special-purpose machines.r r r 2. Rolling roundness ,the first lap to the last lap of its roundness is ±1.0mm,and its flatness is within 1.0mm,toor r r 3. The machine is equiped with a micro-adjustment device for adjusting the diameter.r r r 4. Adopt DISCO rolling reducerr r r 5. The equipment is suitable for various metal pipes with different material and shapes. r r r  r r r Ⅱ.Technical parametersr r
r r No.r r	r r Namer r	r r Unitr r	r r Parametersr r
r r 1r r	r r Max bending capacityr r	r r mmr r	r r ∮50*4.0r r
r r 2r r	r r Max bending radiusr r	r r mmr r	r r 80 or overr r
r r 3r r	r r Motor powerr r	r r HPr r	r r 5r r
r r 4r r	r r Bending speed ranger r	r r Mm/secr r	r r 300/1.5-5 secr r
r r 5r r	r r Standard voltager r	r r Vr r	r r 380r r
r r 6r r	r r Weight of machiner r	r r kgr r	r r 1250r r
r r 7r r	r r Measurementr r	r r mmr r	r r 1700*1700*2500r r

rr 3.滚圆时附有调整直径大小之微调装置。r

rr 4.滚圆机动力装置采用减速马达。r

rr 5.适用于各类不同材质之金属管加工及各类型管子。r

rr 6.弯曲半径:125-1000mmr

rr 7.马力:3HPr

rr 8.弯曲速度:每300mm/ 1.5-5sr

rr 9.机器外形尺寸:800×800×900mmr

rr 10.重量:950kgsr
