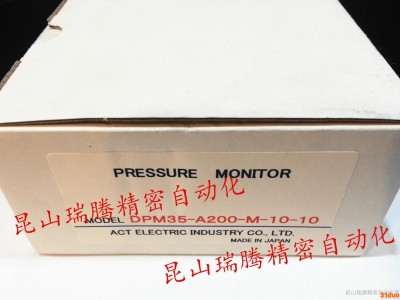

日本ACT数字压力开关 DPM35-A200-M-10-10 (原装日本制)

电子式压力显示控制器( Digital Pressure Monitors )

ACT Digital Pressure Monitor DMP35-A200-10

ACT Digital Pressure Monitor
Model : c
- 35 MPa Type
- Power Supply : AC200V
- Display Unit : MPa (Standard)
- Design Number : 10
- Applicable Pressure Sensor : DPM35-A200-M-10-10
- Input Voltage : 0.5 ~ 4.5 V / 0 ~ Maximum Pressure Display
- Display : 3-Digit LED Numeric Element
- Output System : Open-Collection Output X 2, 40V 100 mA (max.)
- Pressure Setting : Total 4 Points :- High (HI) and Low (LO) Limit for 2 Chanels (Each Set Independently)
- Power Supply for Sensors : DC 5V ± 0.01 V
- Mass : 350 g
Mfg. ACT ELECTRIC INDUSTRY CO., LTD.



另可选购ATS传感器(Applicable Pressure Sensor )

ATS传感器选型型号:

ATS15-02-10 (用于搭配DPM15)已停产(已被ATS35-02-10取代)

ATS35-02-10 (用于搭配DPM35)

- Applicable Pressure Sensor : ATS35-02-10
- Input Voltage : 0.5 ~ 4.5 V / 0 ~ Maximum Pressure Display
- Display : 3-Digit LED Numeric Element
- Output System : Open-Collection Output X 2, 40V 100 mA (max.)
- Pressure Setting : Total 4 Points :- High (HI) and Low (LO) Limit for 2 Chanels (Each Set Independently)
- Power Supply for Sensors : DC 5V ± 0.01 V
- Mass : 350 g
Mfg. ACT ELECTRIC INDUSTRY CO., LTD.
